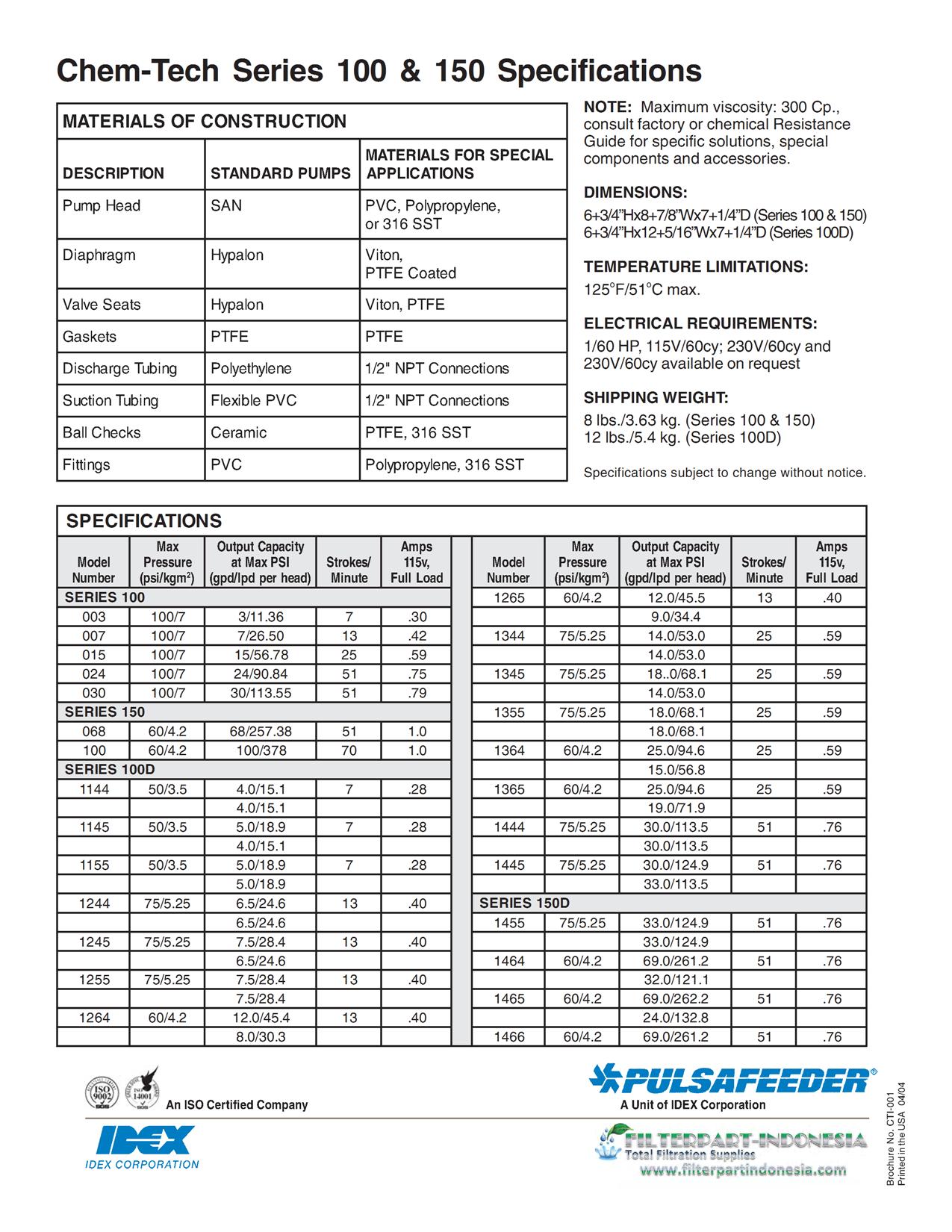

Chem Tech Series 150-100 Dosing Pump

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik

DIMENSIONS :

·         6+3/4”Hx8+7/8”Wx7+1/4”D (Series 100 & 150)

·         6+3/4”Hx12+5/16”Wx7+1/4”D (Series 100D)

TEMPERATURE LIMITATIONS :

·         125^oF/51^oC max.

ELECTRICAL REQUIREMENTS :

·         1/60 HP, 115V/60cy; 230V/60cy and 230V/60cy available on request

SHIPPING WEIGHT :

·         8 lbs./3.63 kg. (Series 100 & 150)

·         12 lbs./5.4 kg. (Series 100D)

MATERIALS OF CONSTRUCTION

STANDARD PUMPS

·         Pump Head : SAN

·         Diaphragm : Hypalon

·         Valve Seats : Hypalon

·         Gaskets : PTFE

·         Discharge Tubing : Polyethylene

·         Suction Tubing Flexible : PVC

·         Ball Checks : Ceramic

·         Fittings : PVC

MATERIALS FOR SPECIAL APPLICATIONS

·         Pump Head : PVC, Polypropylene,or 316 SST

·         Diaphragm : Viton,PTFE Coated

·         Valve Seats : Viton, PTFE

·         Gaskets : PTFE

·         Discharge Tubing : 1/2" NPT Connections

·         Suction Tubing Flexible : 1/2" NPT Connections

·         Ball Checks : PTFE, 316 SST

·         Fittings : Polypropylene, 316 SST

SPECIFICATIONS

·         Model Number : SERIES 150 – 100

·         Max Pressure : 60/4.2 (psi/kgm2)

·         Output Capacity : 100/378 at Max PSI (gpd/lpd per head)

·         Strokes/Minute : 70

·         Amps 115v,Full Load : 1.0
