GF Signet 2536 Rotor-X

Kami adalah importir distributor agen dan supplier GF Signet 2536 Rotor-X Paddlewheel Flow Sensor terlengkap menyediakan berbagai kebutuhan spare part filter water treatment untuk keperluan industri dengan kualitas dan harga terbaik.

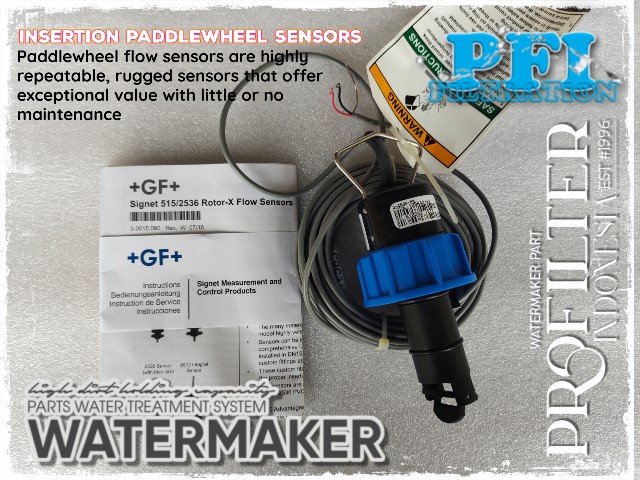

Insertion GF Signet 2536 Rotor-X Paddlewheel Flow Sensor

Paddlewheel flow sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance.

Easy to install and offering proven, reliable performance, Paddlewheel flow sensors are available in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices, which PP, PVDF and stainless steel, make paddlewheels highly versatile and chemically compatible in many liquid process applications.

Flow Specification :

Operating range: 0.1 to 6 m/s, 0.3 to 20 ft/s

Open collector output

Installs into pipe sizes: DN15 to DN900, 0.5 to 36 in

Max Pressure rating: PP 12.5 bar @ 20 °C, 180 psi @ 68 °F PVDF 14 bar @ 20 °C, 200 psi @ 68 °F

Rotor: PVDF

Compatibility: 8900, 9900, 9900-1BC, 9950

Power source: <20mA @ 3.3 to 24 VDC

*Only Signet installation fittings

PVC 2536 version DN15 to DN100 (½ to 4 in.) for concentrated Sodium Hypochlorite 12.5% dosing application in water treatment

Standard: FKM O-rings (EPDM or FFKM on request)

Other materials of rotor and axis on request

Compatibility

Standard output for interfacing with GF Signet instruments.

Value

This product is a low-cost alternative featuring reliable performance, lower maintenance costs and a wide, dynamic flow range. The sensor measures liquid in full pipes and in low-pressure systems. Wet-tap installation allows for sensor removal without process shutdown.

Variety

The sensors are available in a variety of materials for a wide range of pipe sizes and insertion configurations.
