ROPV FRP Pressure Vessel Isi 3 Element 300 psi

Kami adalah importir distributor agen dan supplier ROPV FRP Pressure Vessel Isi 3 Element 300 psi terlengkap menyediakan berbagai kebutuhan spare part filter untuk keperluan industry dengan kualitas dan harga terbaik.

Housing RO membrane adalah komponen penting dalam sistem reverse osmosis (RO) yang berfungsi sebagai tempat pemasangan membran RO.

Info lengkap Housing RO Membrane

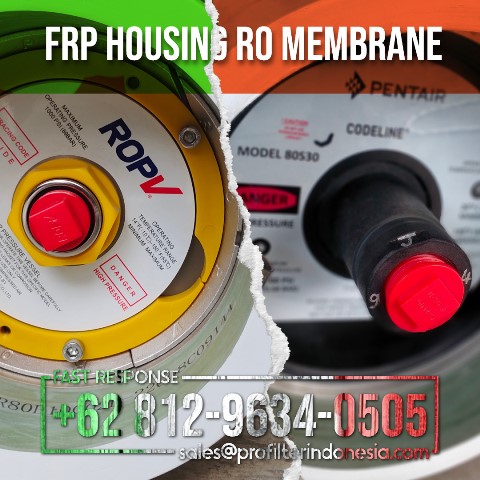

Description ROPV Housing RO Membrane

As a safety precaution the housings are designed for a full body leak at 4 times the design pressure to keep catastrophic failure from happening. ROPV Pressure Vessels are designed to provide safe operation over a long service life if properly installed, operated, and maintained. The vessel may cause loss of life, severe bodily harm, or property damage if improperly installed, operated, or maintained. Read and understand all guidelines provided in the vessel User Manual. Observe every precaution contained therein. It is recommended that only qualified technicians experienced in servicing hydraulic systems work with this vessel. Misuse, incorrect assembly, or use of damaged/corroded components may result in catastrophic failure. ROPV Pressure Vessels are design and manufacture in accordance with the American Society of Mechanical Engineers, ASME, Section X Boiler and Pressure vessels Code ments, for use as a membrane element housing.

Specification ROPV R8040B1000S

• 8inch Side Port FRP Membrane Housing 1000PSI
• Side Port Size: 1.5’, 2’, 2.5’ clamp available
• Permeate port: 1’ NPT
• Port material: SS2205/SS2507
• Length: (1-7) x 40inch
• Designed pressure: 1000PSI (69bar)
• Pressure vessel for 8inch RO, NF and UF membranes.

Key Features

• Operating Temp Range: -10°C –49°C (14°F-120°F)
• Pressure test:  Standard— 1.1x Design Pressure,  ASME— 1.5x Design Pressure
• Internal permeate port not to exceed 125PSI(0.88MPa)
• Operating pH Range: 3 – 11
• Please operate in accordance with User Guide

Untuk informasi lebih lanjut tentang produk dan penawaran harga ROPV Housing RO Membrane 300 psi silahkan hubungi CS kantor kami.
