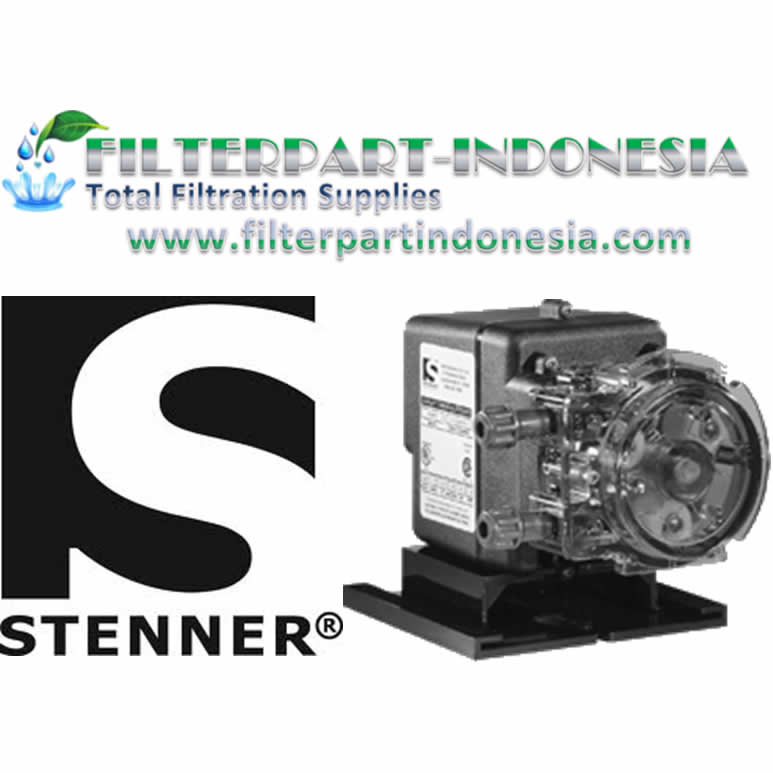

Stenner 170 DM5 Peristaltic Pump
Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik
Double Head Fixed Output Metering Pump - 170DMP5 Classic Series From Stenner
Double Head Fixed Output Metering Pump
· 25 psi (1.7 bar)
· max 170 gpd (644 lpd)
How It Works
Stenner’s double head fixed output metering pump is built with three detachable components: the motor and two pump heads. Outputs are dependent upon the rpm of the motor gears and the size of the peristaltic pumping tubes. All Stenner metering pumps have a 3-point roller design in the pump head, which acts as a check valve to prevent back flow, siphoning, overdosing and loss of prime.
The motor shaft rotates at a fixed rpm which drives the adjustable feed rate control to intermittently engage the roller assembly within the pump heads. The chemical solution in the pumping tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self- priming feature that delivers a constant flow unaffected by the outlet pressures.
Advantages
· Self-priming up to 25 feet and does not lose prime
· Can pump off-gassing solutions
· Solutions contained in tube, not exposed to pump components or air
· Subassemblies fit together without tools; easy service or conversion to another model
· Pump head universal to all Stenner pumps
· Can run dry without damage
· Will not clog from dirt or debris
· Reproducible outputs within 2%
· Adjustable feed rate control from 5%-100% in 2.5% increments
· Pump tubes accept a variety of chemicals
170DMP5 Classic Series Specifications Summary
Outputs @ 60Hz
· Gallons per day: 170.0
· Gallons per hour: 7.08
· Liters per day: 643.6
· Liters per hour: 26.8
· Ounces per minute: 15.10
· Milliliter per minute: 446.88
Outputs @ 50Hz
· Liters per day: 514.8
· Liters per hour: 21.45
· Milliliters per minute: 357.50
Discharge Pressure
· 0-25 psi (0-1.7 bar)
Voltage
· 120V 60Hz; 220V 60Hz
· 230V 50Hz; 250V 50Hz International
· Motor : shaded pole; 44 rpm; 1/30 HP
· Suction Lift : 25' (7.6 m)
· Maximum Operating Temperature : 125° F (52° C)
· Amp Draw : 1.7 120V; 0.9 220V, 230V, 250V
· Dimensions (l x w x h) : 10.2 x 5.3 x 6.0 in (25.9 x 5.3 x 6.0 cm)
· Shipping Weight : 9 lbs (4 kg)
Materials of Construction
· All Housings: Lexan® polycarbonate plastic
· Pump tube: Santoprene® FDA approved
· Pump tube: Tygothane® FDA approved
· Suction/discharge tubing & ferrules (1/4" & 6 mm): LDPE polyethylene, NSF/FDA approved
· Tube fittings, connecting nuts, check valve fitting, weighted strainer: Type 1 Rigid PVC-NSF listed
· All fasteners: Stainless Steel
· Lexan® is a registered trademark of General Electric.
· Santoprene® is a registered trademark of Advanced Elastomer system
· Tygothane® is a registered trademark of Saint-Gobain Performance Plastics
· Pellathane® is a registered trademark of The Dow Company
Agency listings
· Santoprene®: UL, CSA , CE, NSF-61
· Tygothane®: UL, CSA, CE
Accessories shipped with each pump
· 6 connecting nuts 1/4" or 3/8"
· 6 ferrules 1/4" & 6 mm OR 2 ferrules 3/8"
· 2 injection fittings
· 2 weighted strainer
· 2 20' roll of suction/discharge tubing 1/4" or 3/8" white or UV black
· OR 6 mm (Europe) white
· 2 spare pump tube
· 1 mounting bracket
· 1 installation manual
