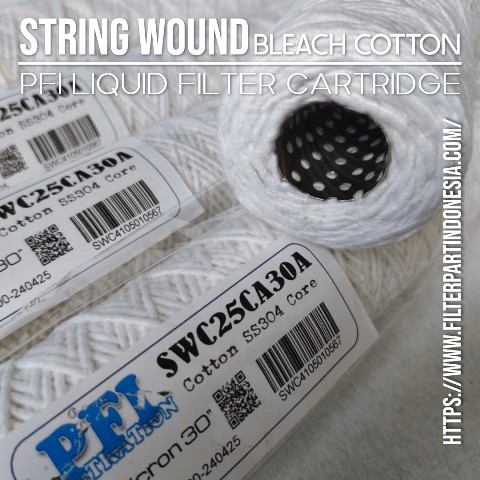

Wound Filter Benang Cotton SS304 Core

Filterpart Indonesia adalah importir distributor dan agen Wound Filter Benang Cotton SS304 Core yang menggunakan material Polypropylene benang maupun core didalamnya sebagai filtrasi sediment yang paling efektif dan efisien untuk keperluan industrial water treatment SWRO BWRO dan Power Plant.

Description Wound Filter Benang Cotton Core

String Wound Filters cartridges are manufactured using the latest winding technology which gives true graded density with denser layers inside and coarser layers outside.

This produces superior depth filters with increased filtration capacity, longer service life and higher performance that reduces overall costs. string filters have high structural integrity combined with a greater voids volume. Giving a lower pressure drop, much-improved dirt holding capacity and efficiency compared to conventional wound filters.

Cartridges are available in 1 to 50-micron ratings, 2.5" and 4.5" big blue filter widths and 10" and 50" lengths, for a broad array of applications.

A string wound filter cartridge is a water-filtering device that reduces sediment, dirt, sand, and other particles from water. The filtration cartridge aims to provide clean, secure drinking water by reducing impurities and contaminants from the water source. These filters are beneficial in regions with high amounts of sediment or other particles in the water supply.

The string used to wind the cartridge changes in diameter by layer, which aids in capturing particles of varying sizes within the filter. Impurities and contaminants in the water are caught in the gradient spaces between the string strands as water passes through the cartridge. It must be changed regularly to ensure the filtration cartridge continues successfully reducing contaminants from the water. Frequency of change-outs depends on the flow rate and concentration of dirt in the filtration stream.

Spesifikasi :

Brand / Model : PFI SWC Series High Efficiency
Ukuran micron : 1 - 150 μm
Panjang : 10 - 50 inch
Diameter Dalam : 28 mm
Diameter Luar : 61 - 62 mm
Tipe atau jenis filter : Sediment Stringwound
Media Filter : Polypropylene
Core media : Stainless Steel 304
End Cap : Double Open End
Max. Temperature : 80°C
Max. Differential Pressure : 1.5 bar / 30°C

Applications :

Pre Filters for Reverse Osmosis Filters
Undersink Water Filtration
Wholehouse Water Systems
Power Plant
Oil and Gas
Private Water Supplies

Untuk informasi lengkap katalog produk dan permintaan penawaran harga SWC10PA10A Wound Filter Benang Cotton SS304 Core silahkan hubungi CS kantor kami.
